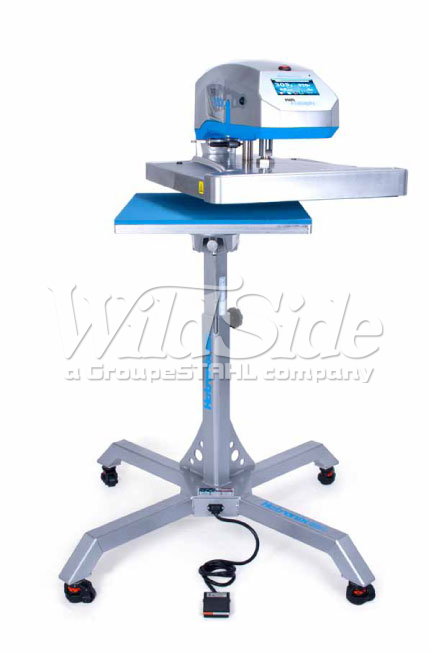

HOTRONIX AIR FUSION IQ™ HEAT PRESS PEDESTAL

Powered by compressed air, the Air Fusion IQ™ heat press helps reduce operator fatigue, while its foot-pedal allows hands-free operation. Available in pedestal and table top models, it’s equipped with the new Fusion IQ™ controller, allowing you to manage users, access usage reports, and troubleshoot issues through the Hotronix Online Portal.

$4,150.00

Clear
Blank apparel not available for international shipments. All other WildSide products can ship internationally.

Heat Press Tech Specs

Technical Specifications

Features

  • Two styles available — Pedestal, with an adjustable-height stand, or space-saving Table top
  • Fusion IQ™ controller with larger, easier-to-use touch screen lets you manage user settings, generate reports, and troubleshoot issues online
  • Air power requires less operator effort — perfect for high-volume businesses
  • Two-hand or hands-free (foot pedal) operation
  • Threadability™ allows you to dress a garment once and print front, back, and sides
  • 16″ x 20″ Upper platen (optional lower platens available in a variety of sizes)
  • Live digital time, temperature, and pressure readout
  • Stores hundreds of application settings for quick transition between materials
  • Production cycle counter
  • Electrical Options:
    120 v; 15 amps; 1800 w
    240 v; 15 amps; 3500 w
  • Proudly made in the USA.
  • Actual Weight: 152 lbs (Pedestal); 126 lbs (Table Top)
  • Shipping Weight: 245 lbs (Pedestal); 154 lbs (Table Top)
  • Dimensions: 40″ x 32″ x 57″ (Pedestal); 34″ x 18″ x 24″ (Table Top)
  • Shipping Dimensions: 48″ x 40″ x 58″ (Pedestal); 37″ x 24″ x 27″ (Table Top)

Hotronix Premier Warranty

  • Lifetime Warranty on Heating Element
  • 5 yr on Framework
  • 2 yr on Circuit board
  • 1 yr parts/labor

* Requires air compressor (not included) with minimum 1 horsepower, 5 gallon hold tank, 120 psi. Uses 2.3 CFM.
